Fox Crooked – FPV Drone Frame Racing Kit

Fox Crooked

This is the is FRAME KIT Carbon Only. Please buy the TPU separately.

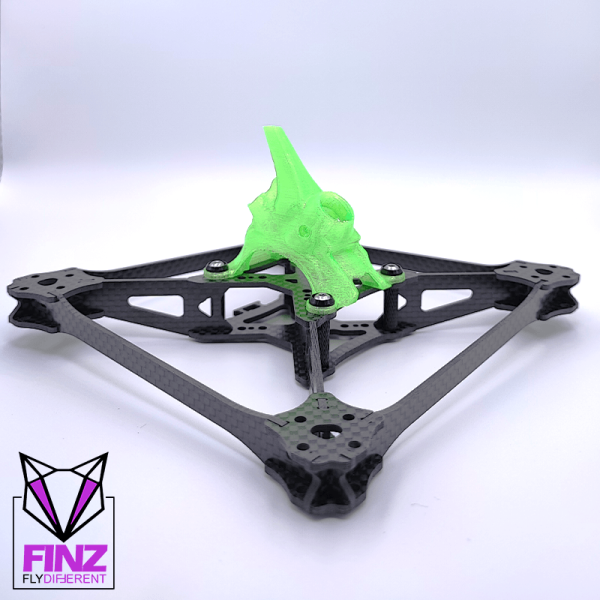

Introducing the Fox Crooked, the smallest and lightest FPV drone frame designed for 5-inch Drone Racing worldwide. After the success of the Fox Racing V1 in 2020, this FPV drone frame is the result of months of research and experimentation, pushing the frame beyond the limit of physics.

The oblique arms of the Fox Crooked allow the motors to be at different heights, enabling propeller overlap and delivering unprecedented maneuverability and responsiveness during turns. It’s as if the drone is glued to the air.

• ★ Weight: Only 45 grams (51 grams with TPU)
• ★ True-X: 170mm Wheelbase
• ★ Crooked arms
• ★ Propellers overlap: Beyond the limit
• ★ Supports: 30×30 and 25×25 electronics, in addition to 20×20 electronics, all in the same plate!
• ★ Electronics protected: By the carbon frame
• ★ Titanium: Motor Screws
• ★ New FPV Camera position: Close to the center of gravity
• ★ Available for: Analog, HDZERO, & DJI

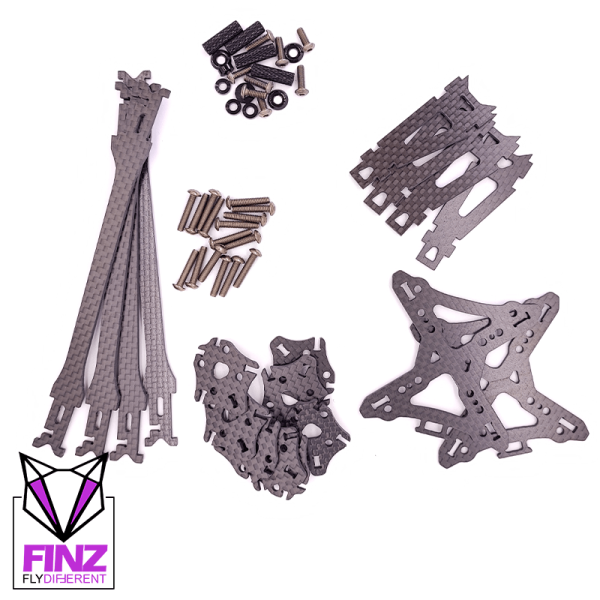

PACKAGE INCLUDES:

• 2x Main Plates
• 4x Spar
• 4x Arms
• 8x Motor Bases
• 1x Bolts Kit
• 16x Titanium Motor Screws

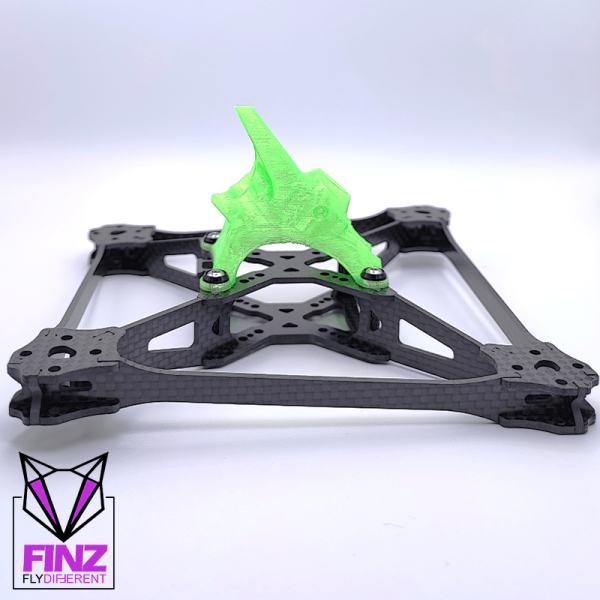

Quality FPV Frame

The FOX Crooked, weighing only 45 grams (52 grams with TPU), is lightened by as much as 13 grams. It shares some parts with the Fox Pro, including the Canopy, the main plate (usable as either a top or bottom plate to house electronics), and the motor bases.

Prepared to install electronics with both 20×20 mm and 25×25 mm and 30×30 mm mounting holes, all completely protected by the carbon frame. The new revolution canopy brings the FPV camera to a higher position, very close to the center of gravity of the quadcopter, providing an unprecedented flying experience and control.

Titanium screws for the motors significantly reduce weight while ensuring strength and durability. Arms are of equal length, minimizing spare parts. The T700 Carbon guarantees great impact resistance, along with the interlock arm system that can absorb crashes up to 70% more than a normal x-frame.

For future-proofing the camera solution and maximizing weight savings, FOX Crooked only fits NANO size cameras

Optimized for HDZero Race V3 VTX and HDZero Nano 90fps Camera
